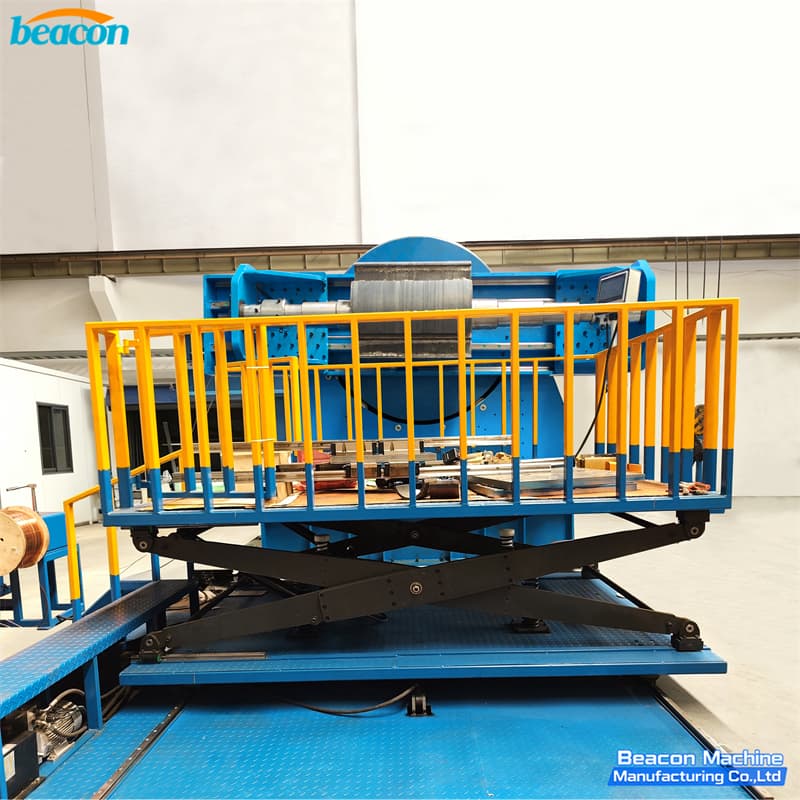

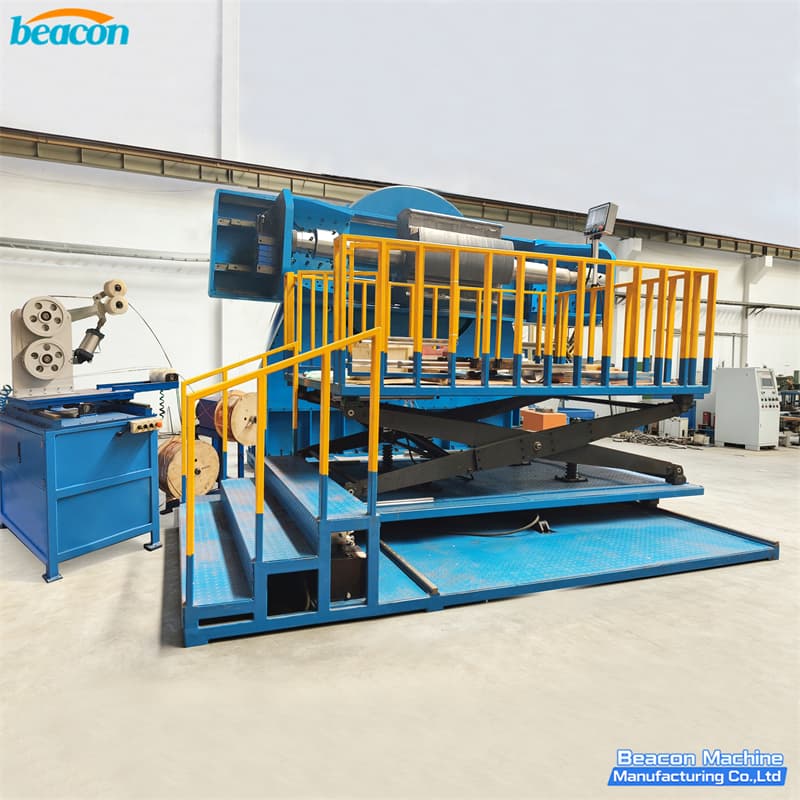

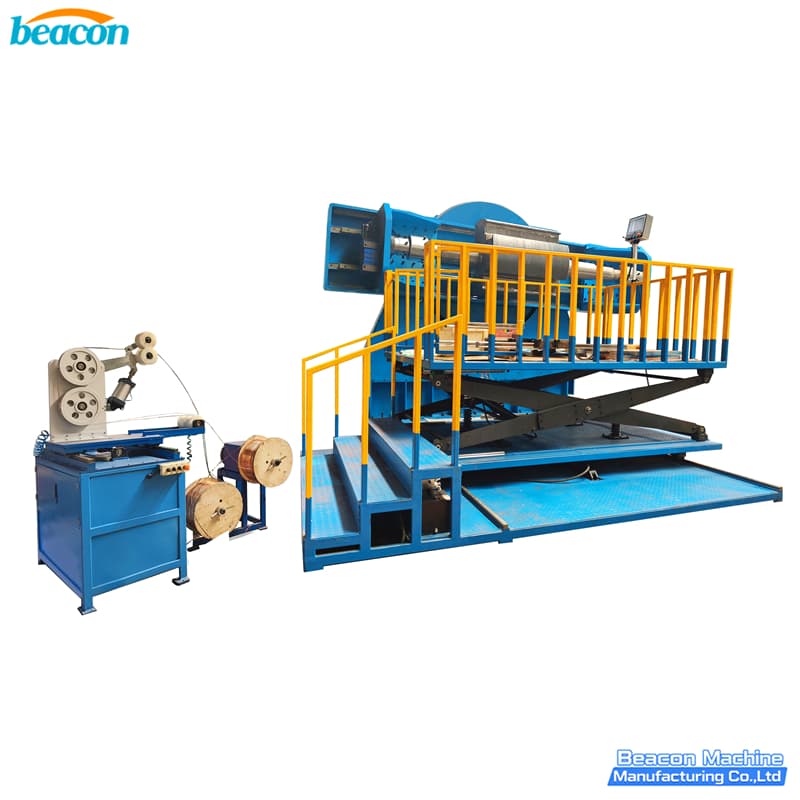

BEACON MACHINE WD-3500 | Heavy-duty automatic coil winding machine | Industrial Transformer Winding Equipment

The BEACON MACHINE WD-3500 is a robust heavy-duty automatic coil winding machine specifically engineered for the manufacturing of large-scale power transformers and industrial motors. This system provides an ultra-stable platform for handling massive wire spools and complex winding patterns. Many workshops combine this unit with our precision YYW-20000 Dynamic Balancing Machine for comprehensive electrical and mechanical component maintenance, ensuring that every wound coil meets strict conductivity and structural standards required for high-voltage applications.

Featuring an advanced PLC control system and a high-resolution industrial master console, this industrial winding machine allows for millimeter-level accuracy in wire displacement. The WD-3500 incorporates a high-torque drive motor and a reinforced lift-adjustable platform to facilitate the loading of heavy workpieces. With its programmable tension control and multi-axis coordination, technicians can execute high-speed winding without risking wire deformation, making it a definitive choice for heavy-industry manufacturing plants worldwide seeking repeatable results.

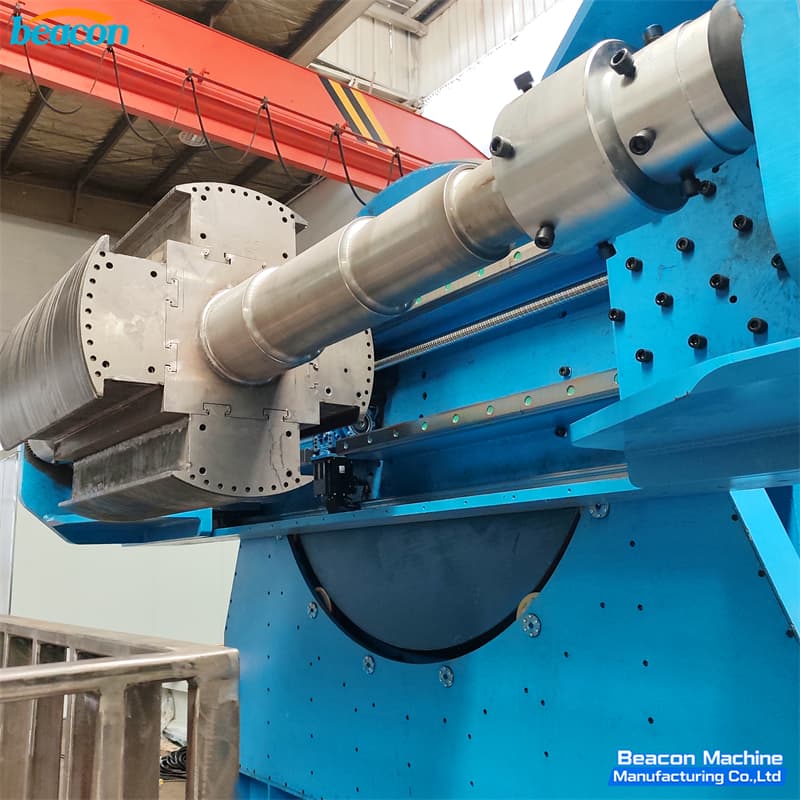

• High-Torque Performance: Utilizes a premium AC frequency conversion motor to maintain stable spindle speed even under maximum load weight.

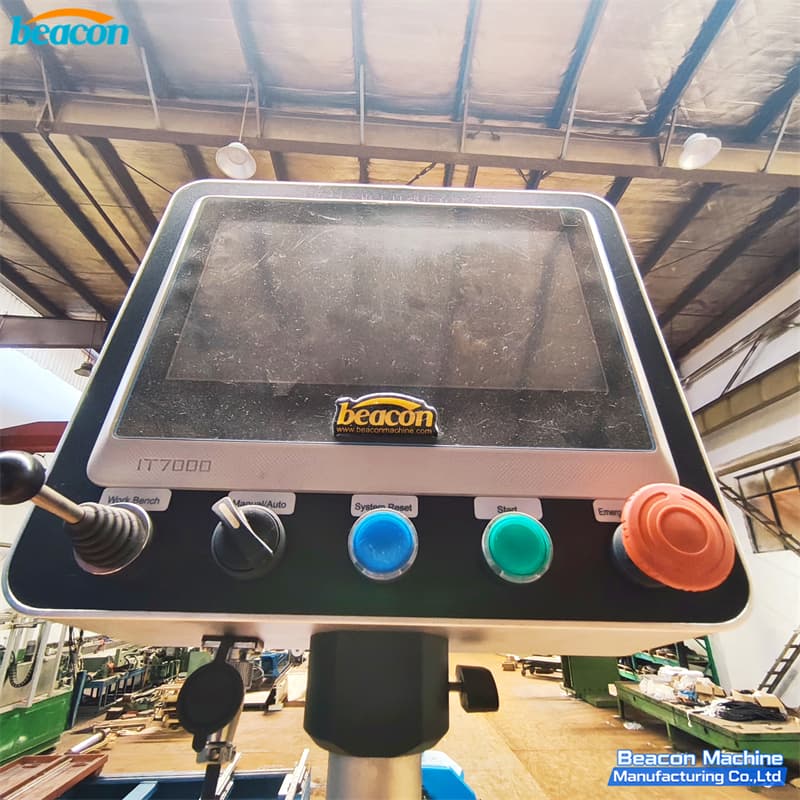

• Intelligent PLC Control: Equipped with an intuitive IT7000 touch screen interface for programmable winding turns and automatic wire layering sequences.

• Reinforced Structural Design: Built with high-strength industrial carbon steel and a stabilized base to eliminate vibration during high-speed heavy-duty operations.

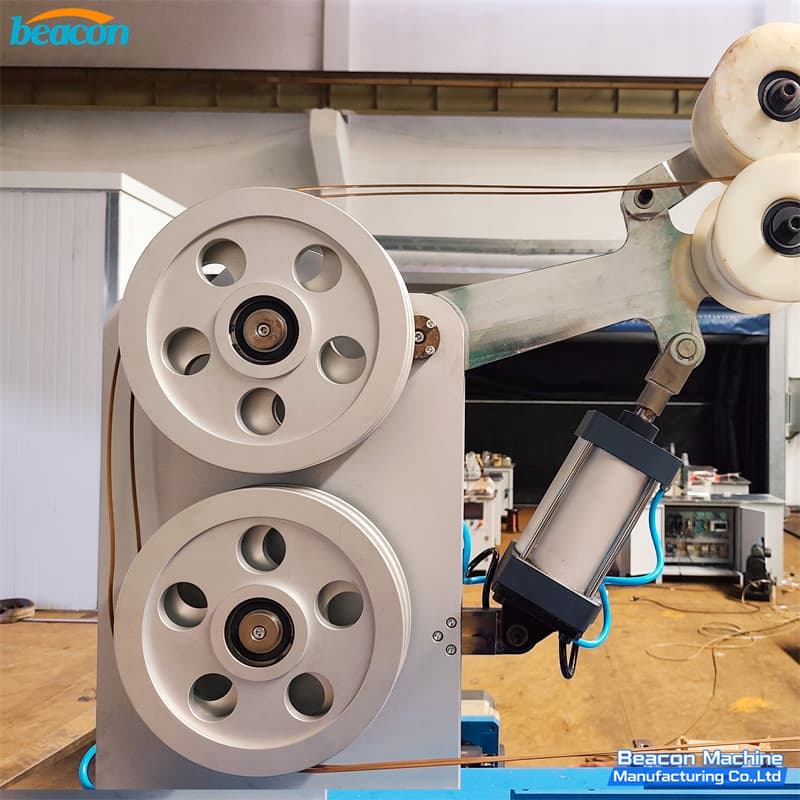

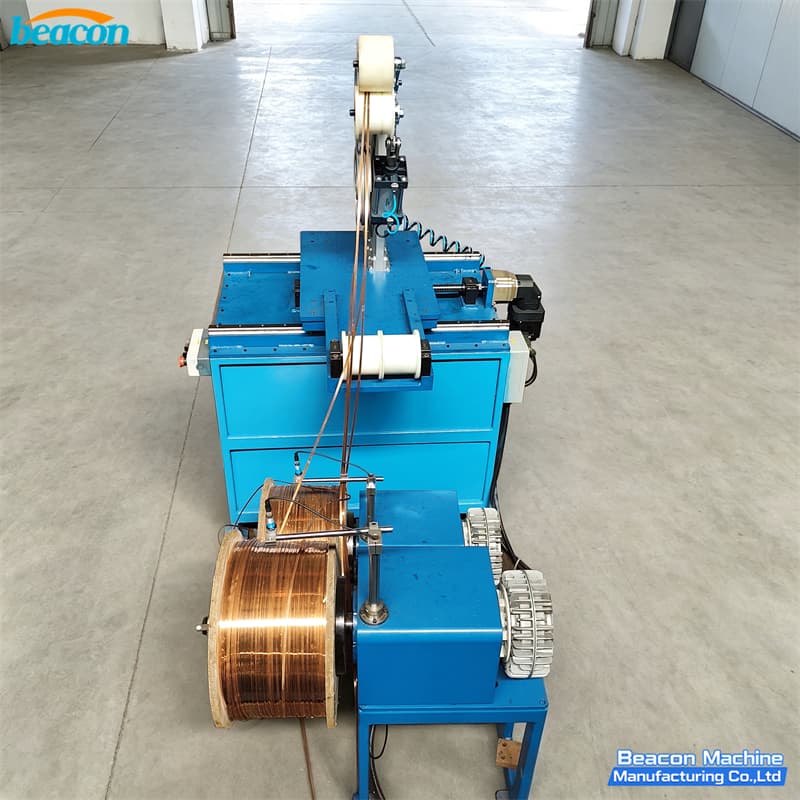

• Precise Tension Management: Features a specialized tensioner system that prevents wire stretching and insulation damage for both round and rectangular copper wires.

• Global Technical Service: BEACON MACHINE provides 24/7 online technical assistance and remote video training to ensure rapid equipment deployment.

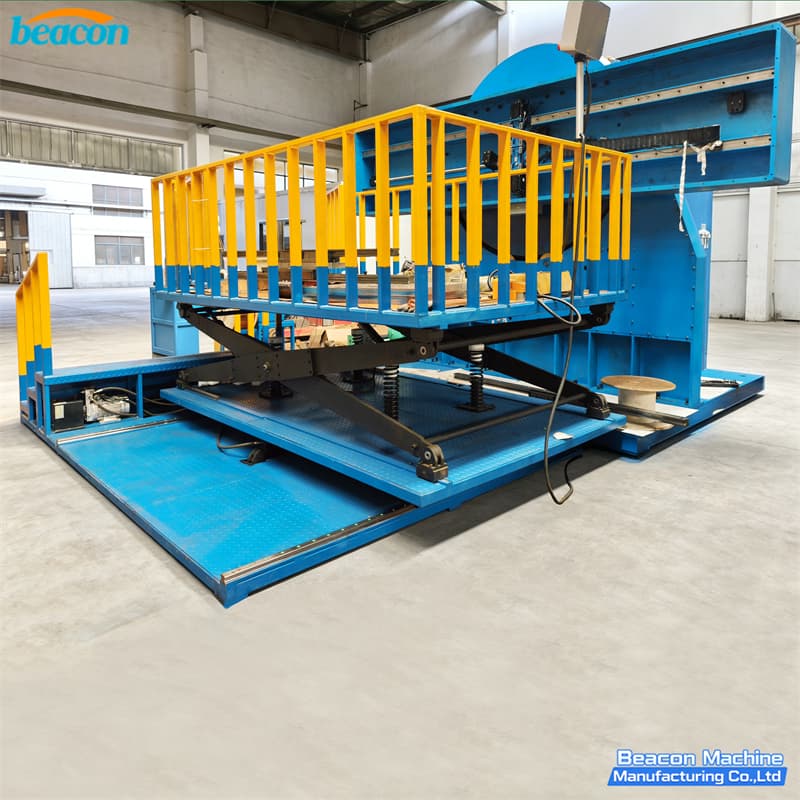

• Versatile Lifting Platform: Includes an integrated scissor-lift work station to accommodate various transformer core diameters and lengths safely.
